Material and Plating Material

Screws	M3.0 Steel Ni plated
Pin Header	Copper alloy, Sn plated
Plastic Housing	PA66, UL94-0

Electrical performance Electrical

Reference Standard Standard	UL	IEC
Rated voltage	300V	250V
Rated current	15A	24A
Use wire range Wire range	22-14AWG	2.5mm²
Contact Resistance	20MΩ
Insulation resistance	500mΩ/DC500V
Withstanding voltage	AC2000V/1Min
Temperature range Temp.range	-40℃~+105℃
Torque	5.10kgf-cm/0.5Nm/4.43Lbin

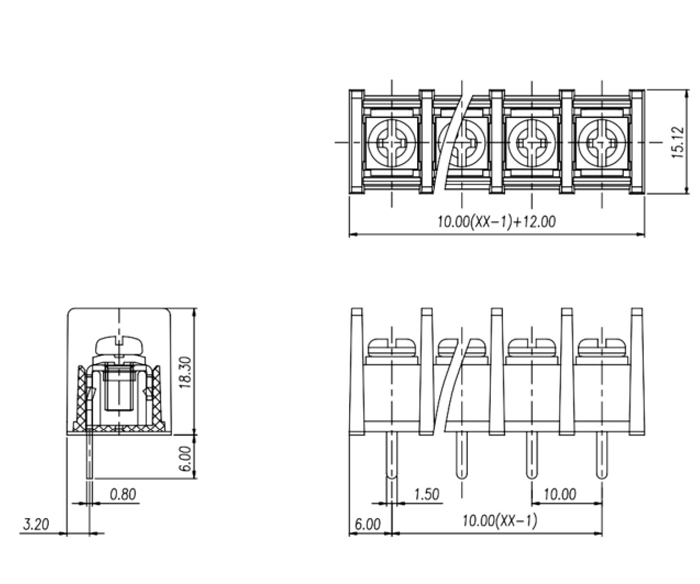

Dimensions
